Truck mounted boom pumps, high pressure line and trailer pumps, separate placing booms and spider booms, all Schwing and Putzmeister. Open any unit for its specification sheet.

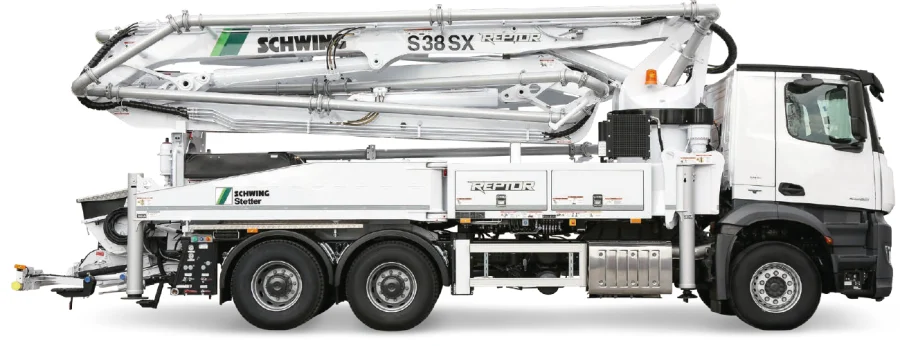

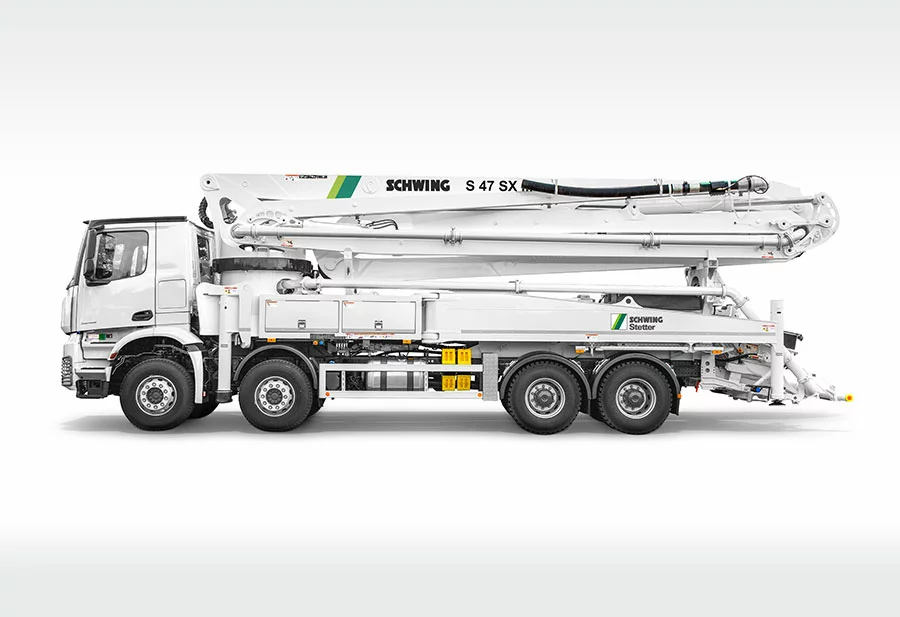

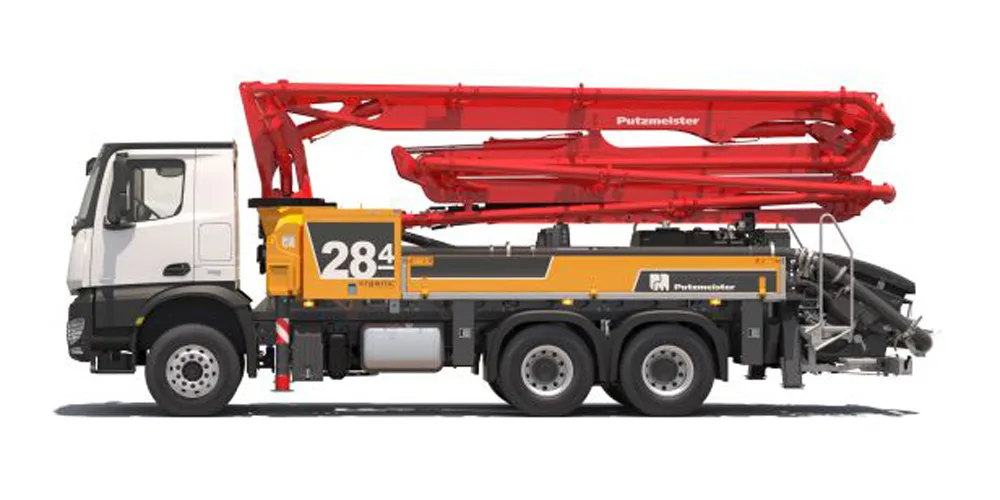

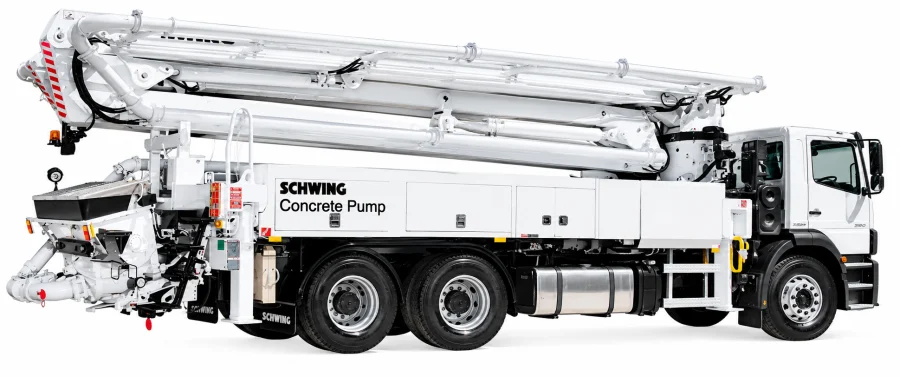

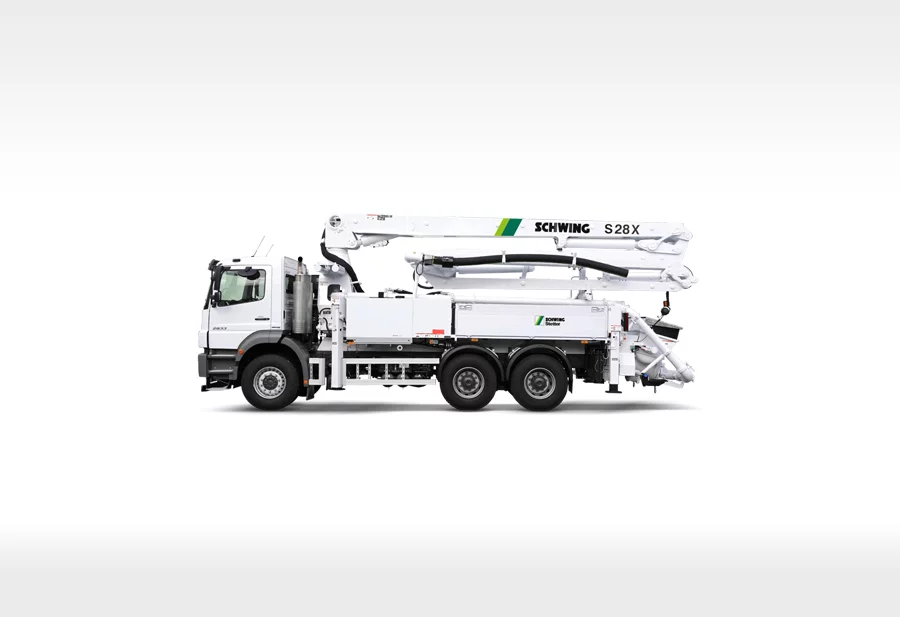

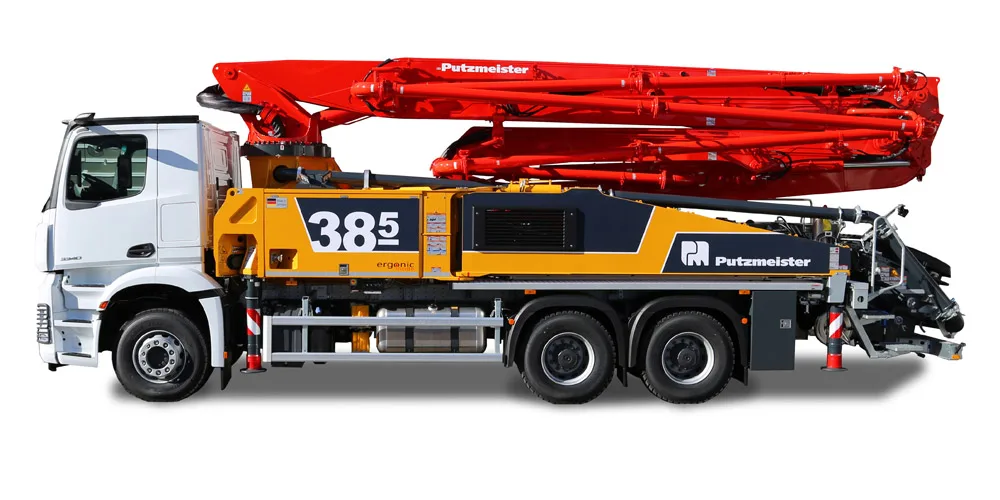

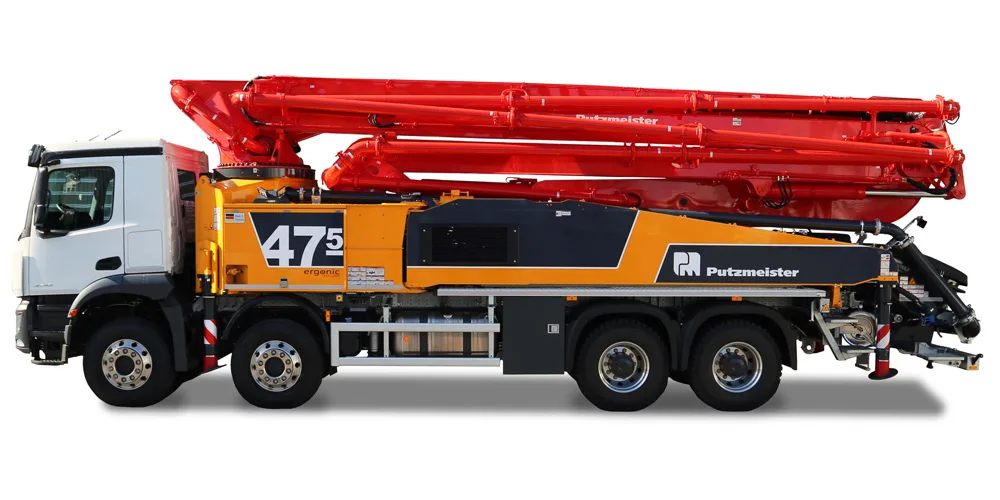

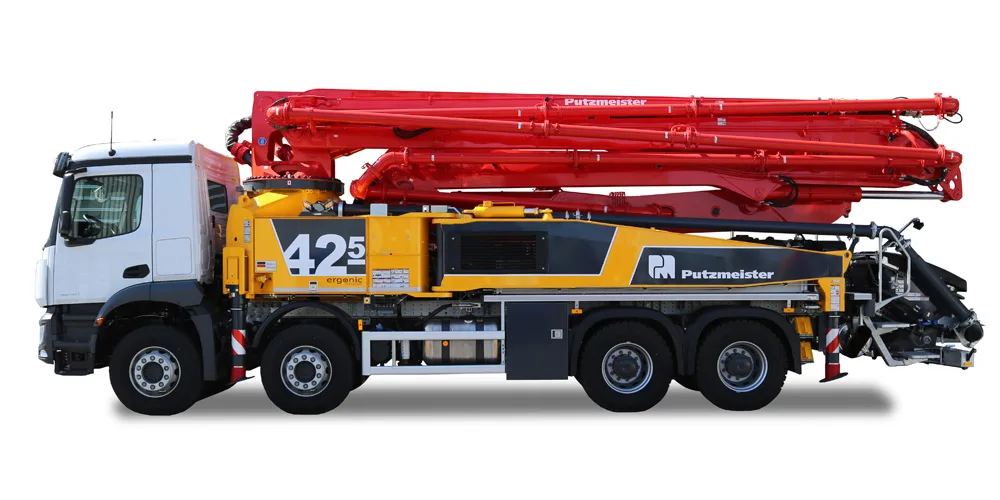

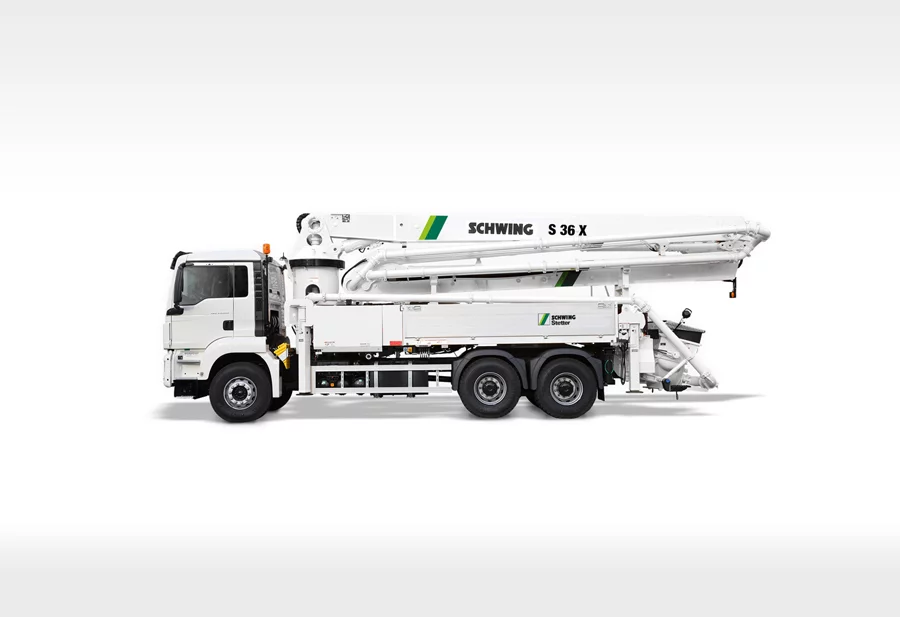

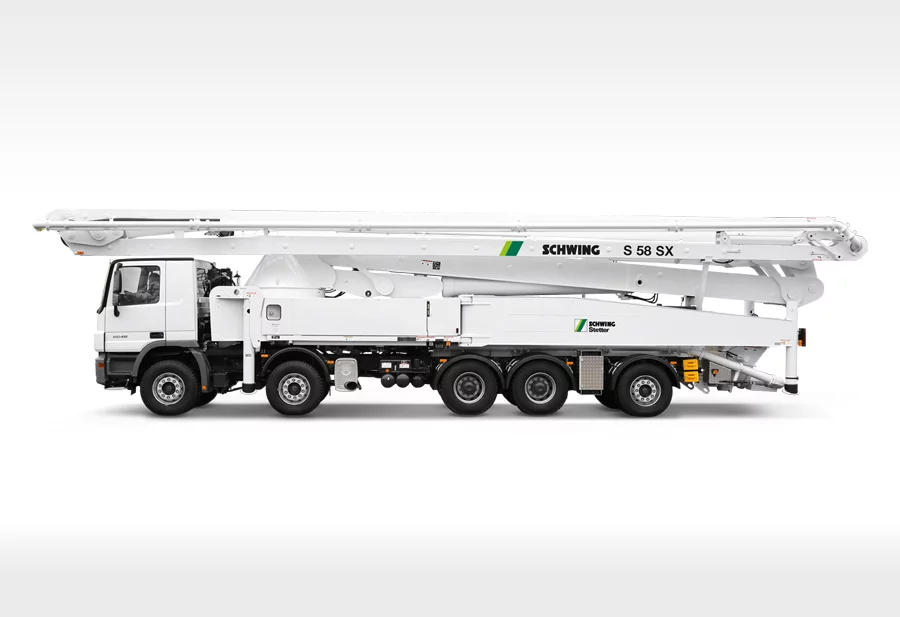

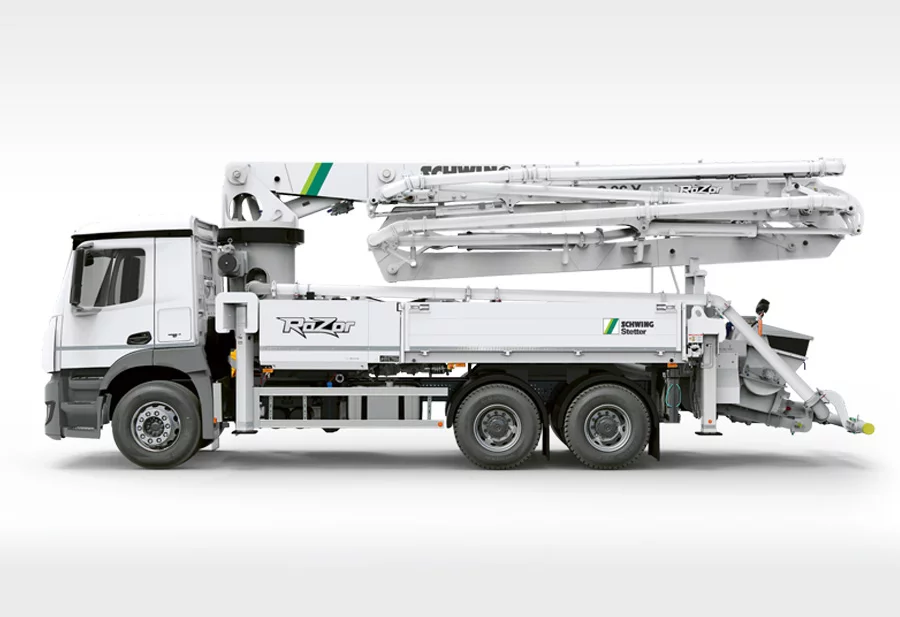

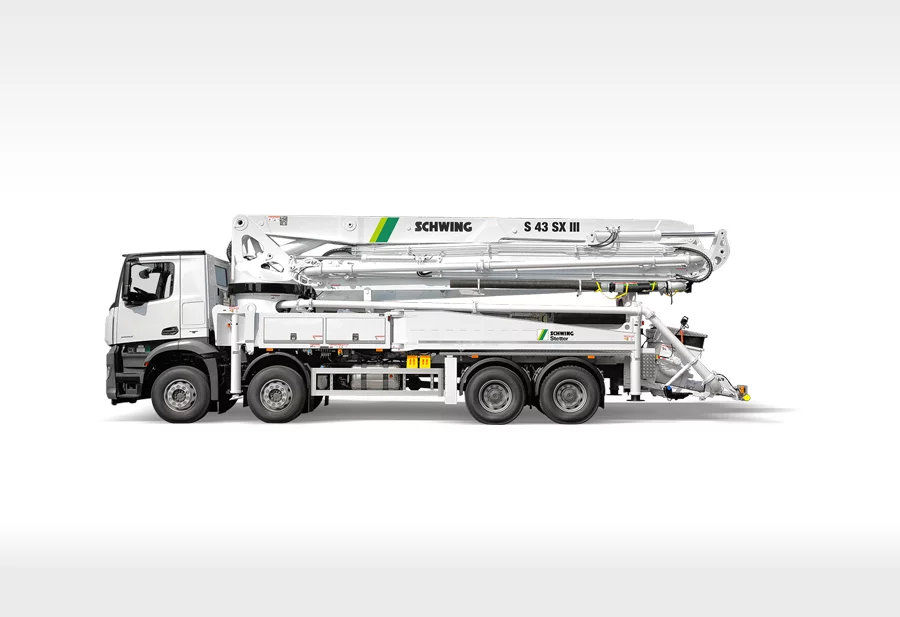

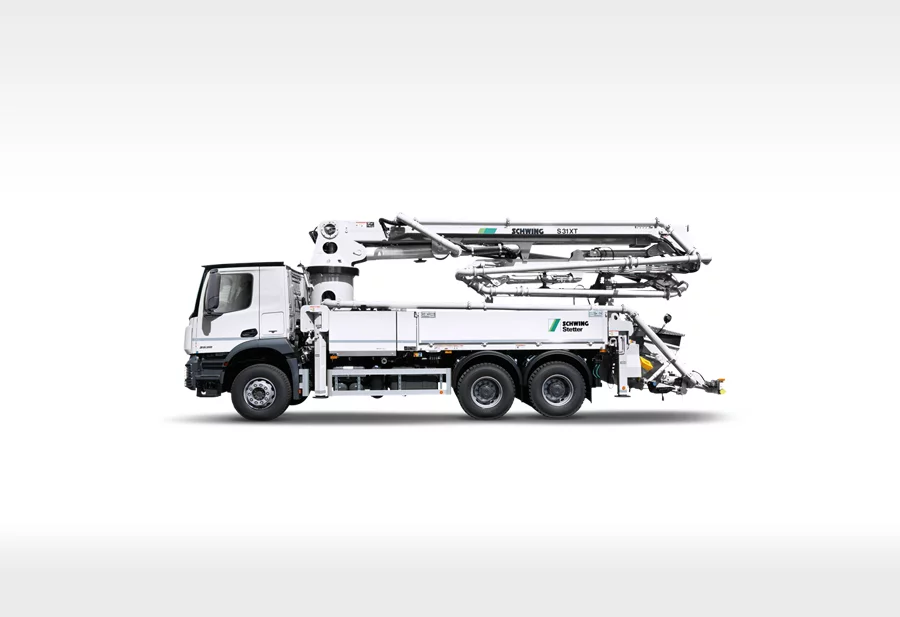

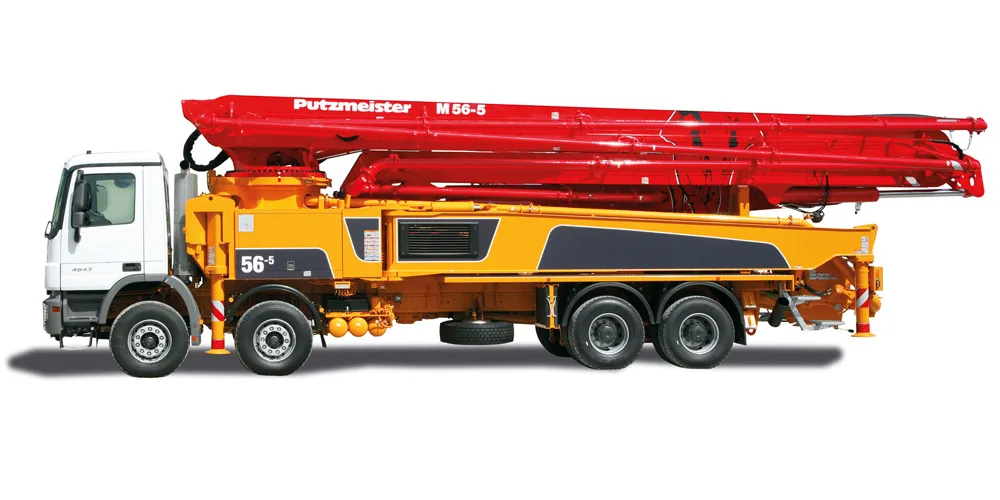

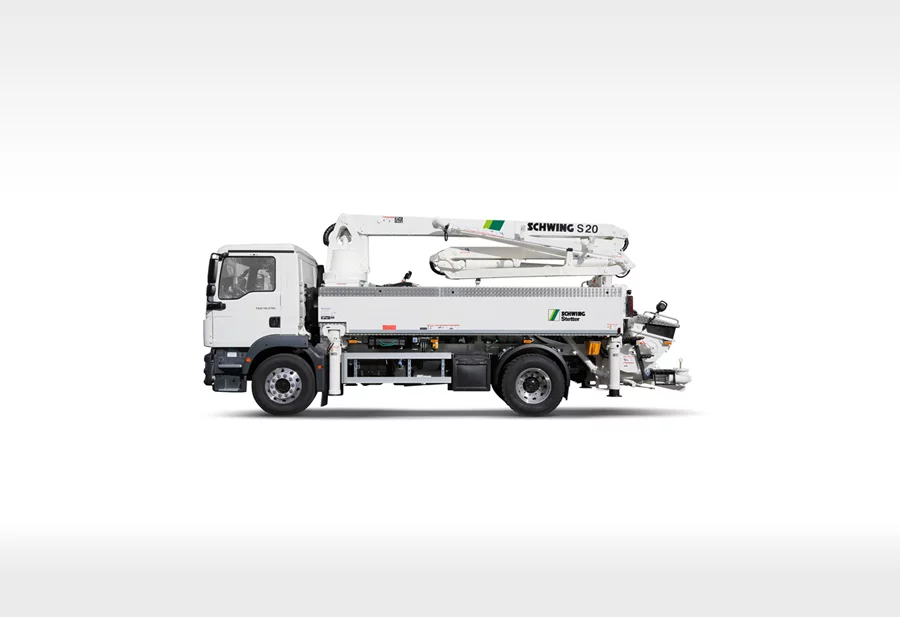

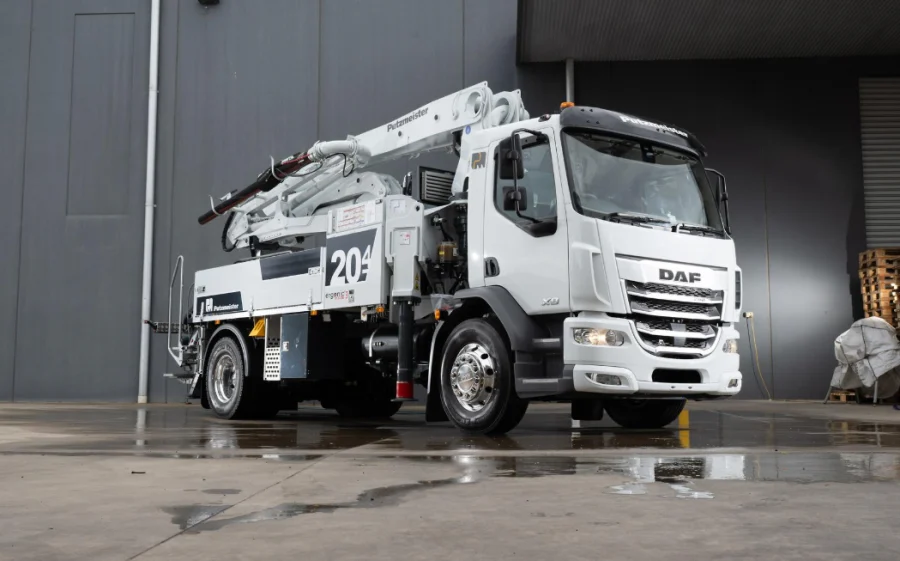

Boom pumps from 20 to 58 metres, so the same fleet covers a house slab in a tight street and the biggest pours in the region. Open a unit for a printable PDF: the boom photo with the manufacturer's specification sheet.
Spec sheets are the manufacturer's published documents. More on choosing the right boom size.

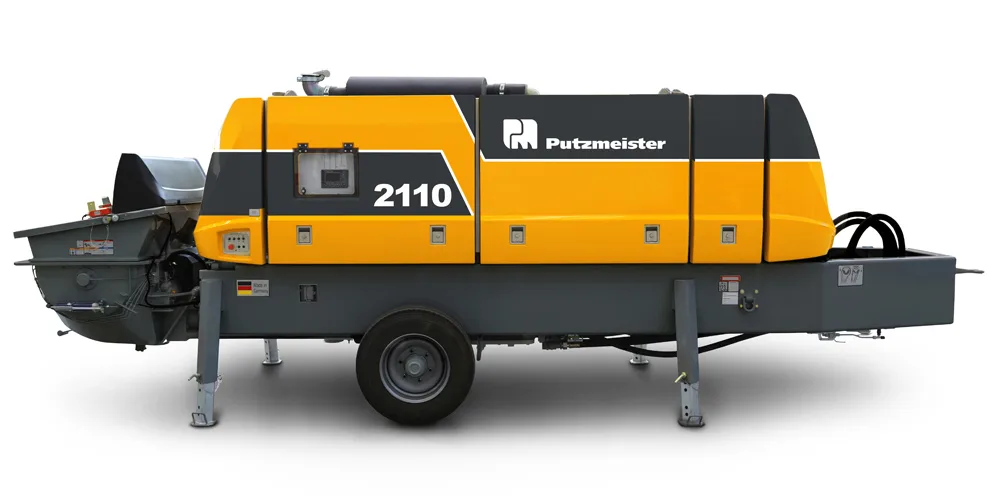

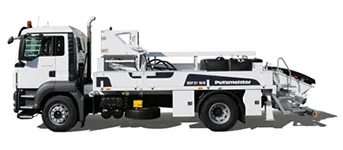

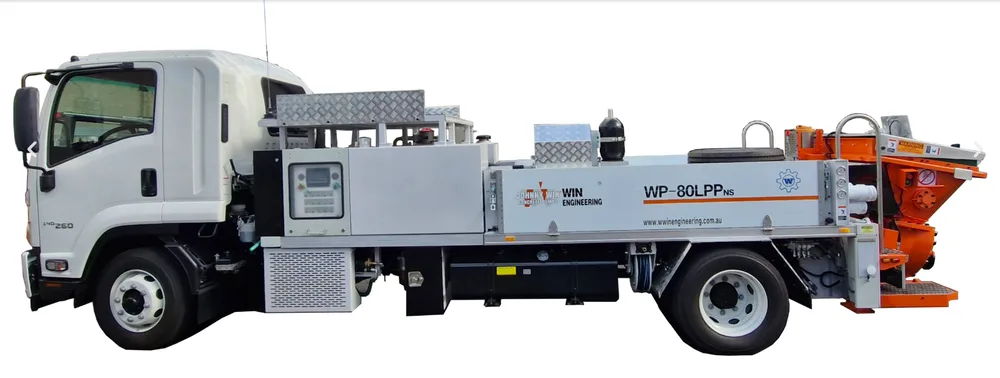

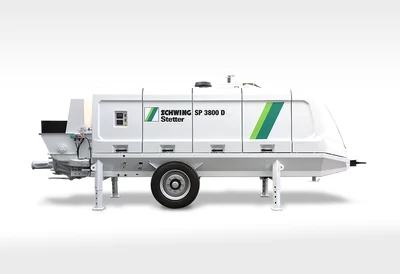

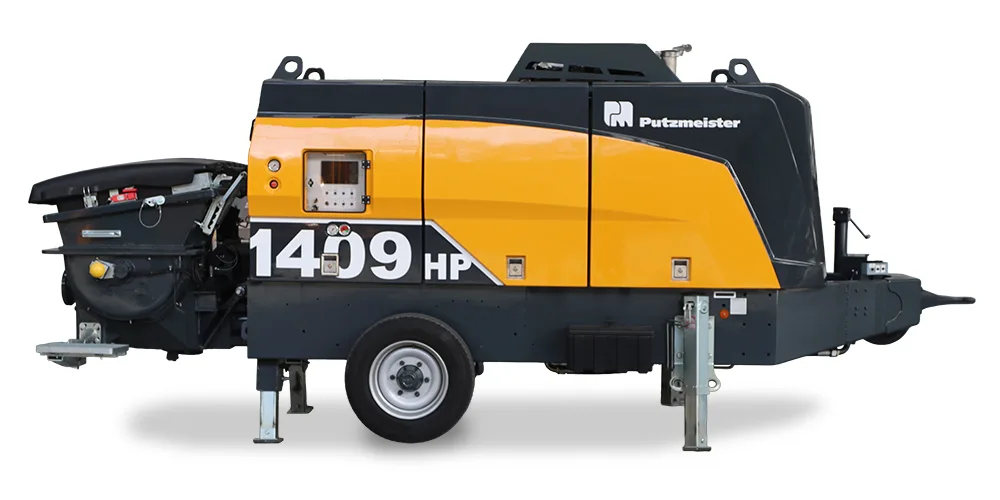

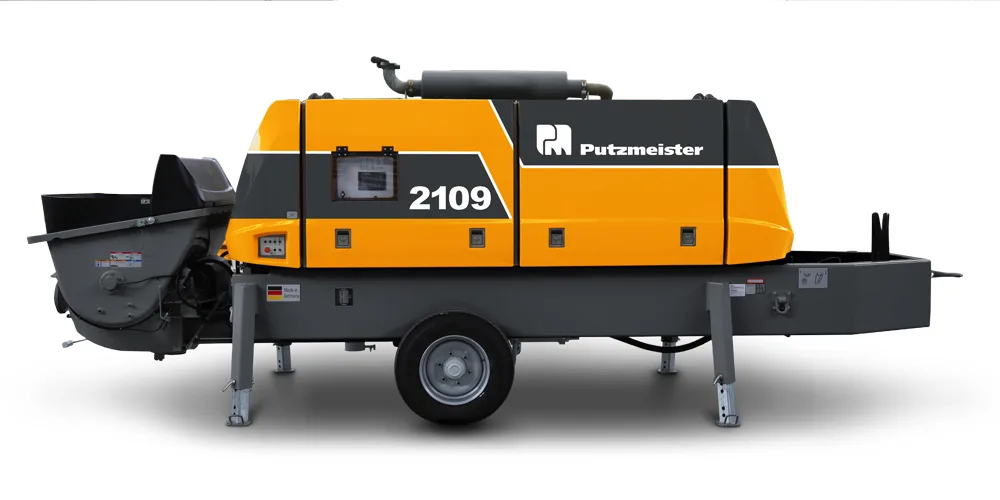

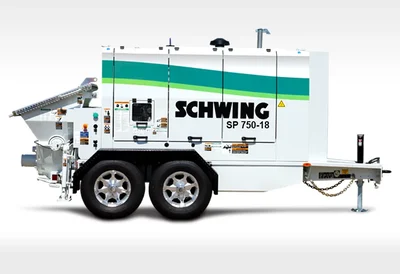

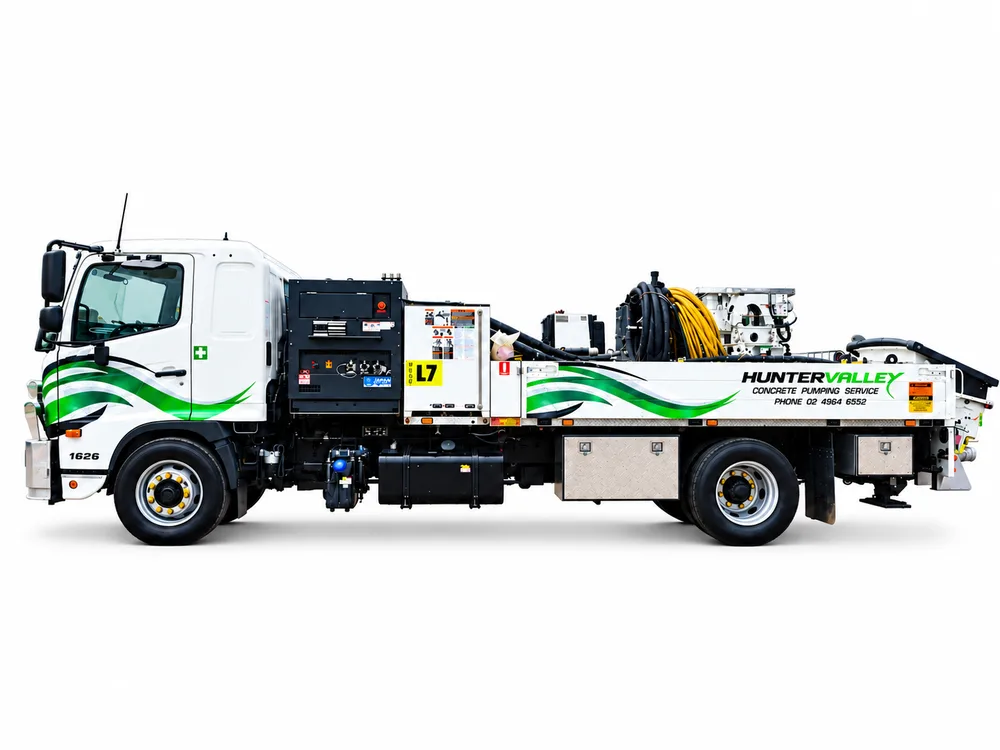

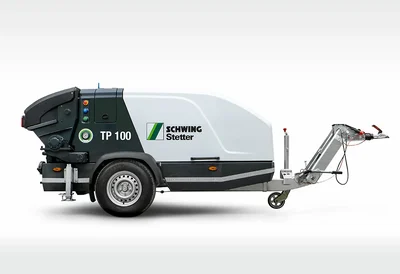

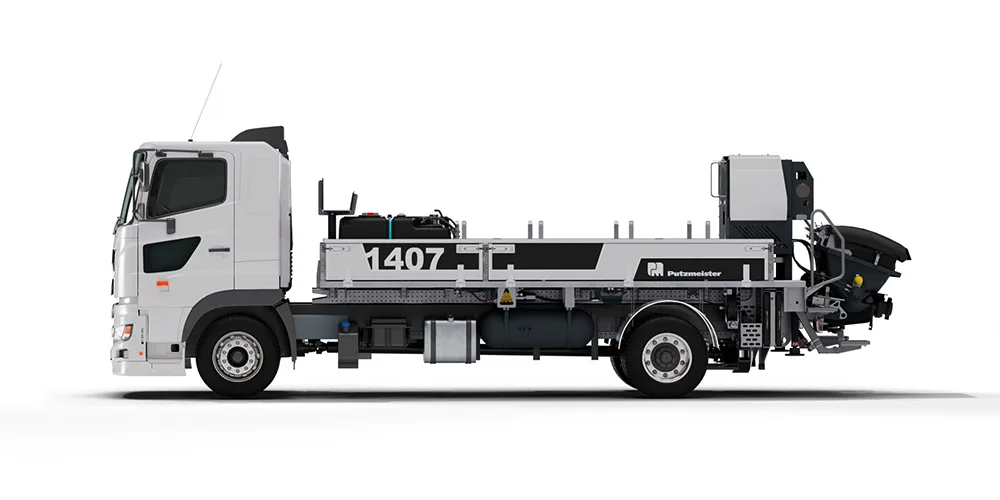

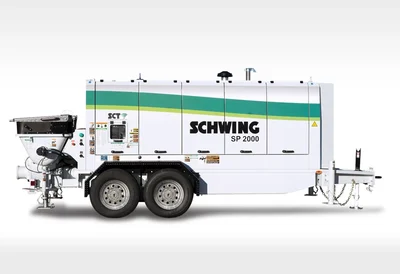

High pressure units that push concrete through a ground line when no truck can get near the pour. We supply the pipeline and the linesmen with the unit. Open a unit for a printable PDF: the pump photo with the manufacturer's specification sheet.

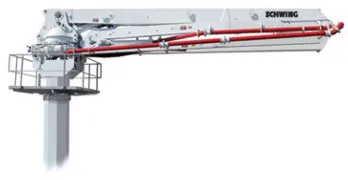

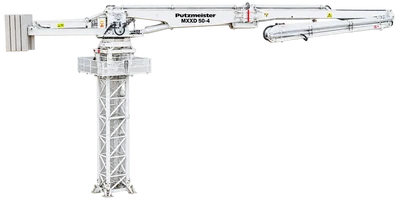

A separate placing boom lives on the structure while a pump feeds it from the street. It is how multi-storey decks get poured without a crane bucket in sight, and it has carried our barge and bridge work too.

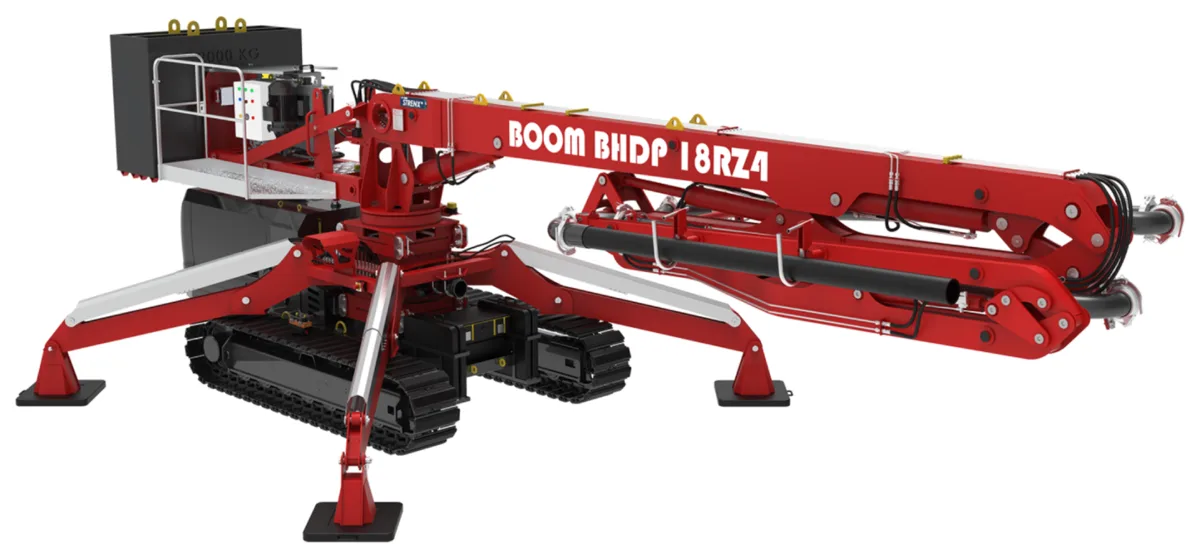

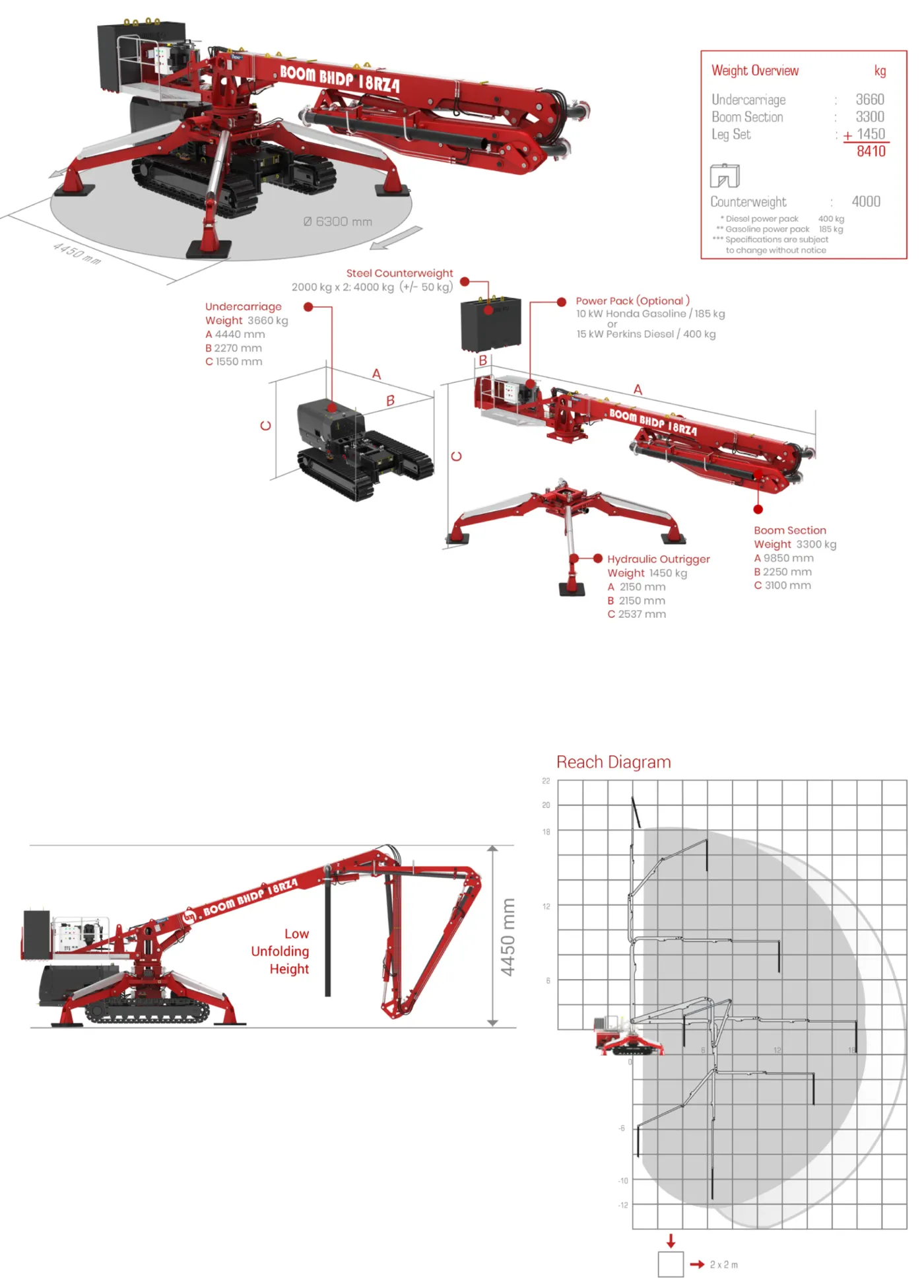

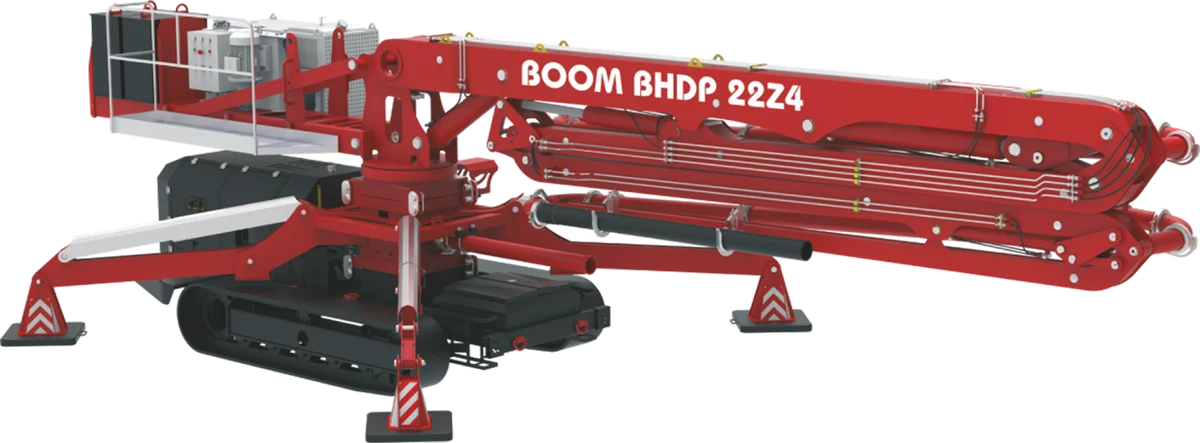

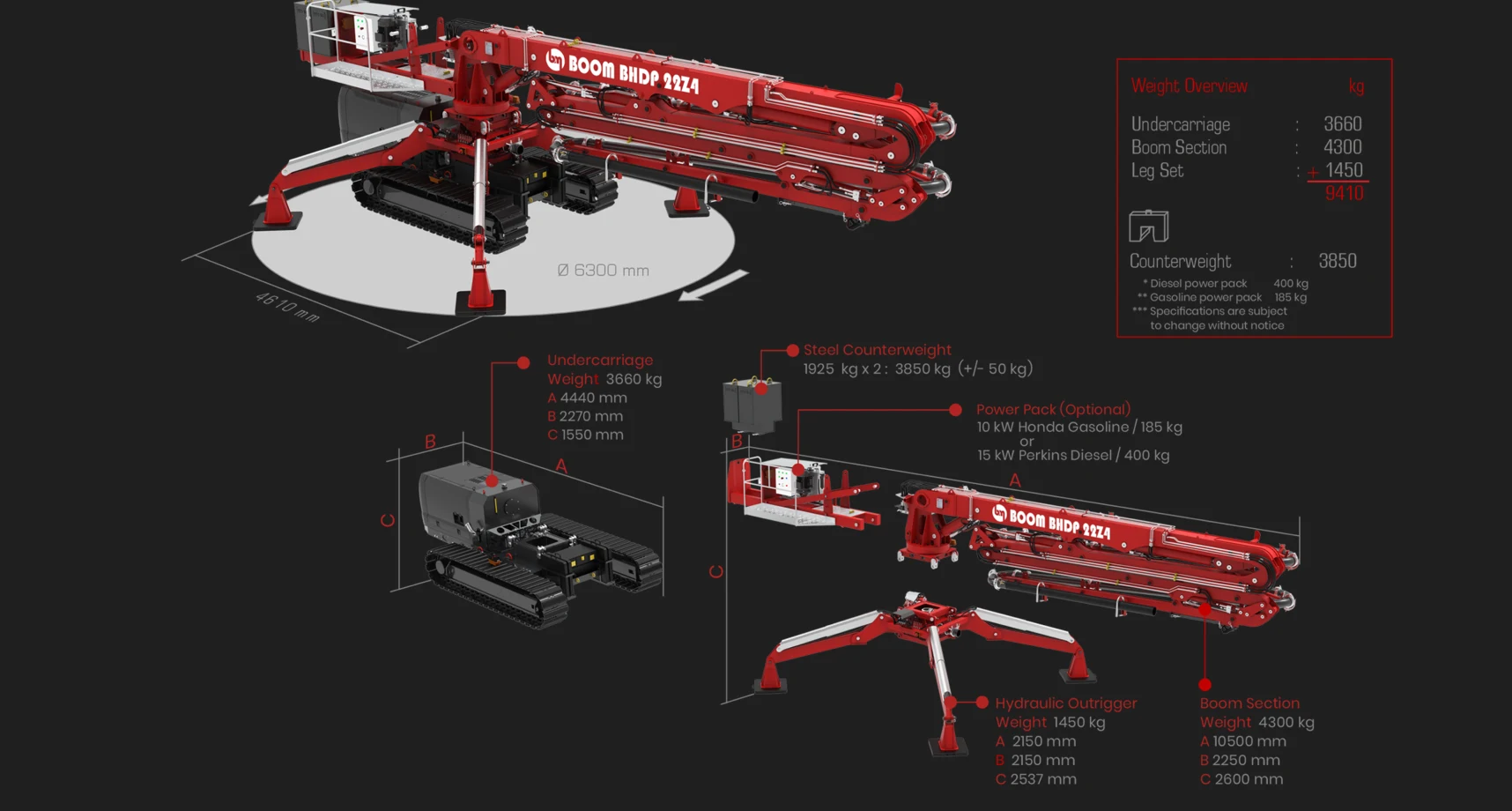

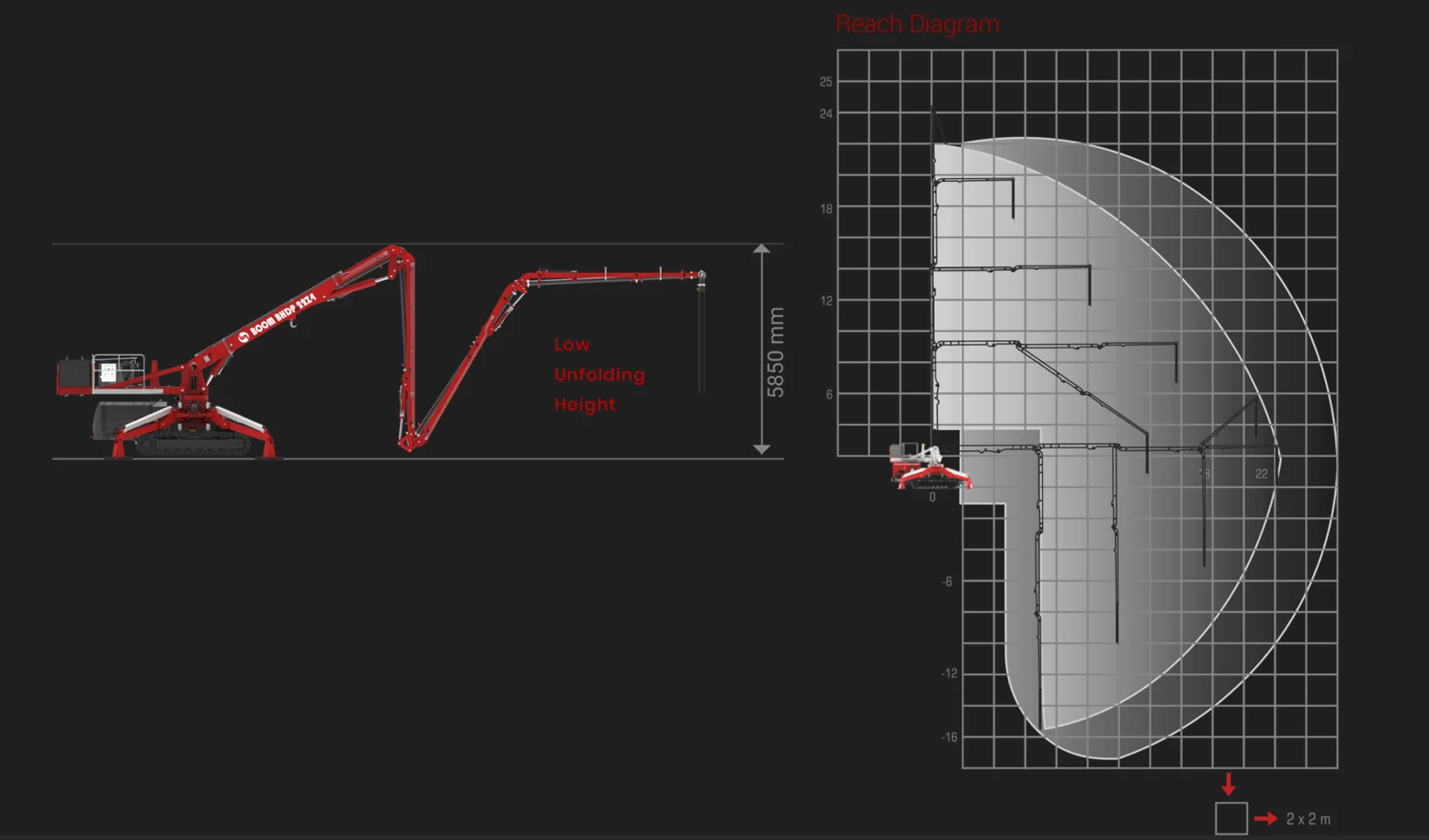

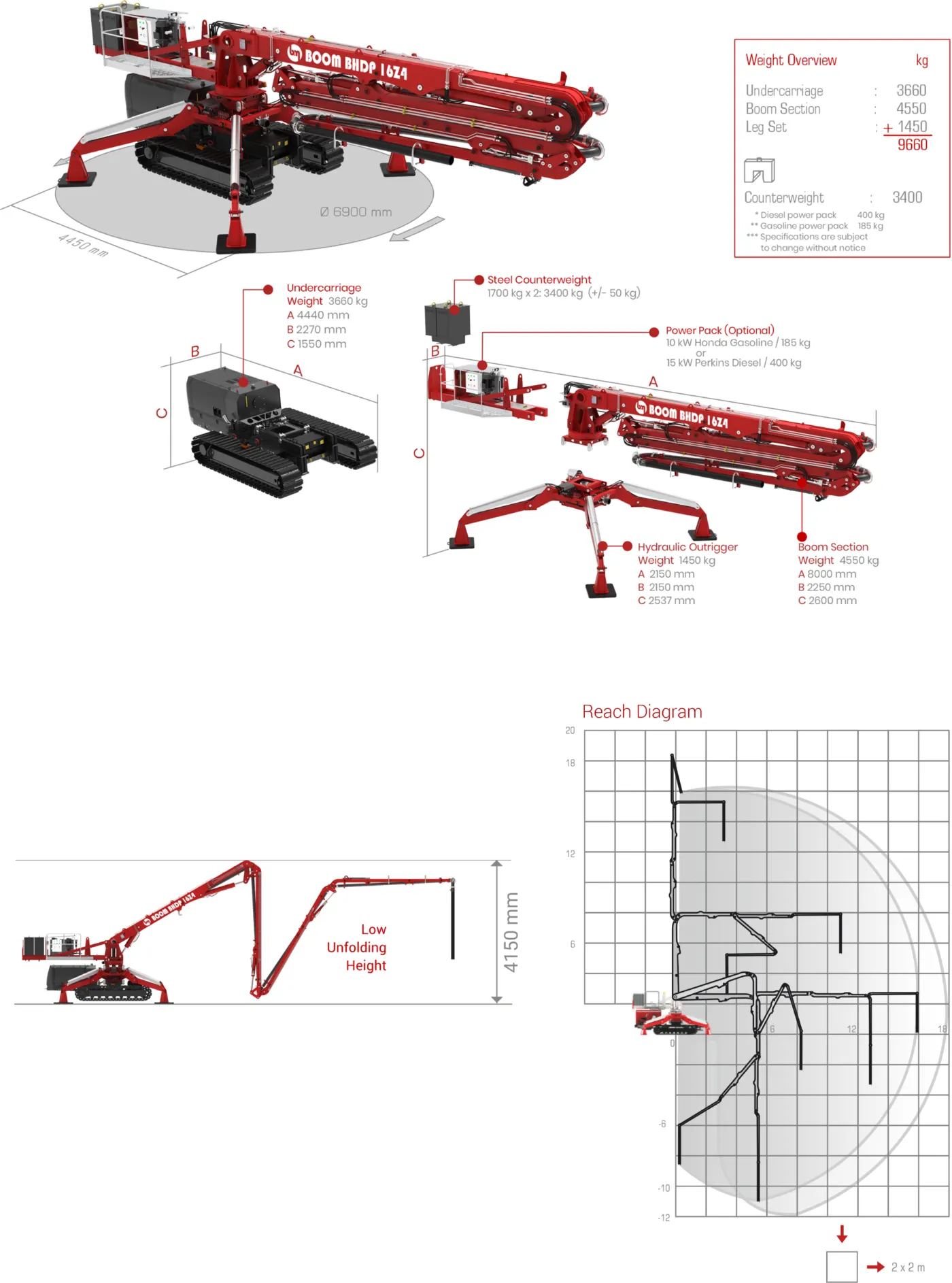

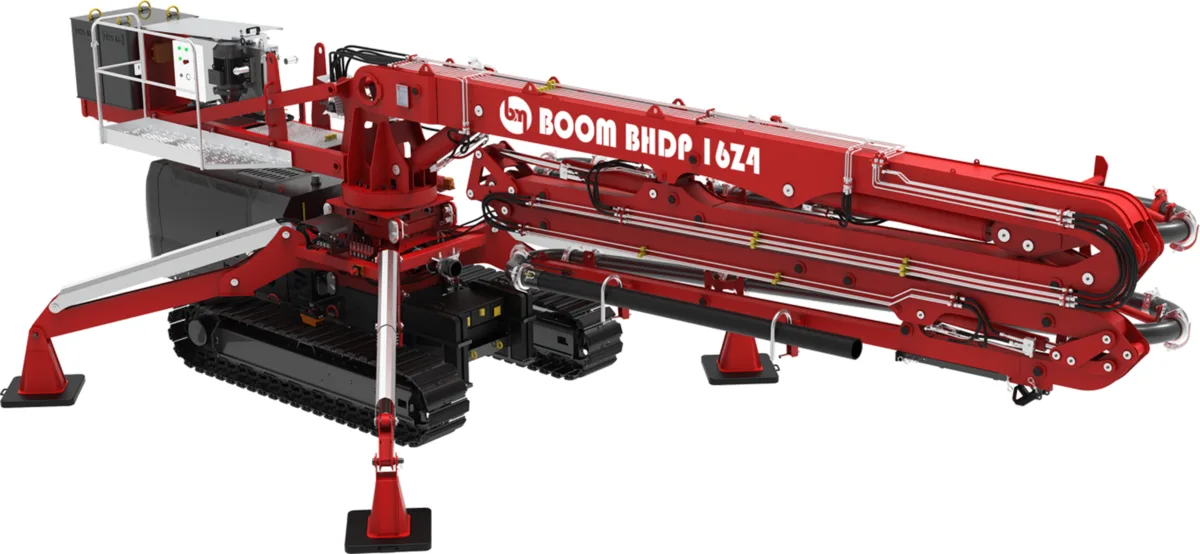

Compact placing booms on tracks or a leg set, for the pours a truck cannot reach: inside a building, down a battered site, on a deck fed from the street. Three units. The figures below are the ones we can read off the maker's sheet; open a sheet for the full drawing and reach diagram.
Dimensions are the maker's A x B x C transport figures per component. Specifications are subject to change without notice; we confirm the unit for your job at booking. Ask about spider boom availability.
Every model in the fleet: the outrigger footprint it needs and the load each leg puts into the ground. Use it to check access and bearing before pour day.
| Model | Front Outrigger Spread L-R | Rear Outrigger Spread L-R | Front-Rear Outrigger Spread | Front Outrigger Load (KN) | Rear Outrigger Load (KN) |
|---|---|---|---|---|---|
| S20M | 2.20 | 2.15 | 4.69 | 110KN | 70KN |
| S28M | 5.96 | 3.60 | 6.58 | 130KN | 100KN |
| S31M | 6.21 | 5.70 | 7.13 | 200KN | 160KN |
| S32M | 6.24 | 5.73 | 7.92 | 180KN | 140KN |
| S36M | 6.21 | 5.70 | 7.12 | 190KN | 150KN |
| S38M | 6.95 | 7.30 | 7.64 | 195KN | 195KN |
| S43M | 7.95 | 8.30 | 8.42 | 240KN | 240KN |
| S47M | 8.95 | 9.30 | 9.68 | 245KN | 240KN |
| S58M | 8.90 | 12.53 | 11.55 | 370KN | 360KN |
| Model | Front Outrigger Spread L-R | Rear Outrigger Spread L-R | Front - Rear Outrigger Spread | Front Outrigger Load (KN) | Rear Outrigger Load (KN) |
|---|---|---|---|---|---|
| 20.4 | 3.4 | 2.6 | 4.68 | 105KN | 65KN |
| 28.4 | 5.20 | 2.60 | 6.40 | 200KN | 120KN |
| 38.5 | 6.30 | 7.00 | 7.30 | 200KN | 195KN |
| 42.5 | 7.50 | 7.90 | 8.10 | 225KN | 240KN |
| 47.5 | 8.40 | 9.30 | 9.00 | 240KN | 245KN |
| 56.5 | 9.30 | 12.10 | 10.50 | 310KN | 300KN |
Figures are from the HVCPS outrigger spreads and loads sheet (download the PDF). Site access, setup room and line runs decide the final unit; we confirm that with you before pour day.
Volume, date, and what the access looks like. We will come back with the right unit for the job, and if the site is tricky we will look at it first.
